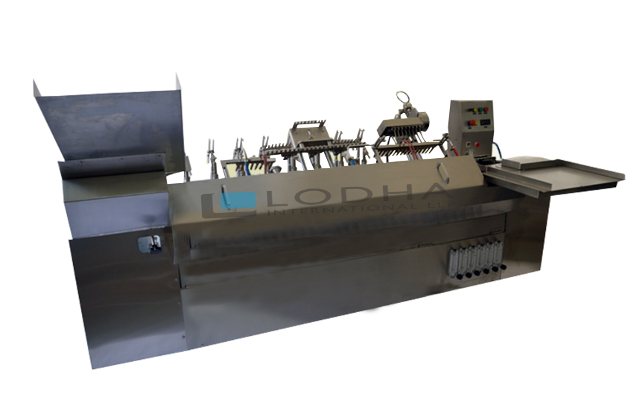

Six Head Ampoule Filling and Sealing Machine

Six Head Ampoule Filling and Sealing Machine

LODHA proudly presents its all-new model - LI-AFS 6. This machine is the best you can get for filling and sealing of glass ampoules. LODHA has supplied its Six Head Ampoule Filling and Sealing Machine in various industries. LODHA’s ampoule filling machines are the preferred choice in industries like pharmaceutical, biotechnology, cosmetic, veterinary, and chemical industry. Our design of Ampoule Sealing Machine is of twp types – 1) the standard model, 2) customized model. The customized model is subject to changes requested by clients. Both the models have the minimum filling and sealing speed of 30 ampoules per minute and can reach up to 150 ampoules per minute. Ampoule Filler Machine built on the principal of slant travel of ampoules while filling and sealing to take care of wide variation of ampoule neck dimensions, thicknesses, and ovality of available ampoules.

The machine structure is made of stainless steel square pipes frame & encompassed with Stainless Steel coverings. The matt finish makes the machine engineering works look artistic. The model LI-AFS 6 comes with a large opening area at the bottom. The maintenance engineers find it comfortable to do their part of the job of maintaining and support. The pendant type electrical control panel is lifted from the machine for ease of operation and safety.

Salient Features of Six head ampoule filling machine:

  • Developed with the Compact GMP model.
  • Output range - 30 to 150 ampoules/minute.
  • All contact parts made from AISI SS 316L & other Non-contact parts made from AISI SS 304.
  • The machine is suitable to fill 1ml to 20ml Ampoule and minimum change over parts from 1ml to 20ml ampoule size.
  • The Six head ampoule filling machine has an inbuilt "No Ampoule - No Filling" system.
  • Ampoule neck centering during gas flushing and filling operations.
  • The LI-AFS 6 has the capacity of nitrogen gas flushing before, during, and after filling.
  • Easy to maintain, easy to clean and has a lower maintenance cost
  • Machine equipped with a pre-warming station.
  • Minimum change over time

Six Head Ampoule Filling Machine

LI-AFS 6 is easy to operate. To start the process the sterilized ampoule tray needs to be loaded in to slant hopper. The well-synchronized star wheels start their functioning and start delivering the ampoules in an eccentric ampoule batch of six. The rack stops and pre-gassing, filling, post gassing, preheating, and final sealing is done of ampoules sequentially. The sealed ampoules then collected on collection tray automatically without involving any human touch in the entire process of filling and sealing.

The machine performs the following operations:

  • Ampoule feeding by in-feed hopper, star wheel, and ampoules transfer into transport rack.
  • Two ampoules advanced per machine stroke.
  • Centering of ampoules necks during pre-heating, post-heating, gas flushing, and liquid filling.
  • Rotation of ampoules neck in the preheating and heating station.
  • Elimination of burdened-off ampoule tips by clippers and ejection into a separate container.

Technical Specification:

Sr.No.Machine ModelLI-AFS 6
1.No. of HeadSix
2.Ampoule Handling Range1 ml to 10 ml
3.Production Output80 to 150
4.Filling Accuracy±1%
5.Require Gas for SealingLPG & Oxygen (O2)
6.Nitrogen FlushingPre & Post Nitrogen Flushing Available
7.Power Specification1 H.P.
8.Electrical Characteristics230 Volts, Single Phase, 50 Hertz, 4 Wire System
9.Contact PartsMade from Stainless Steel 316L
10.Non-Contact PartsMade from Stainless Steel 304
11.Overall Dimension1600mm (L) x 1400mm (W) x 1400mm (H)

The Final Say!

LODHA is the experienced and most preferred choice for the industries when it comes to the Six head Ampoule Filling and Sealing Machine. We provide customization as per industry requirements along with the best after-sales service. Our fair prices, customer-first policy, and on-time delivery match the expectations of clients. Enquire for free and get the free no-obligation quote from LODHA.
