Model: LI-LVF

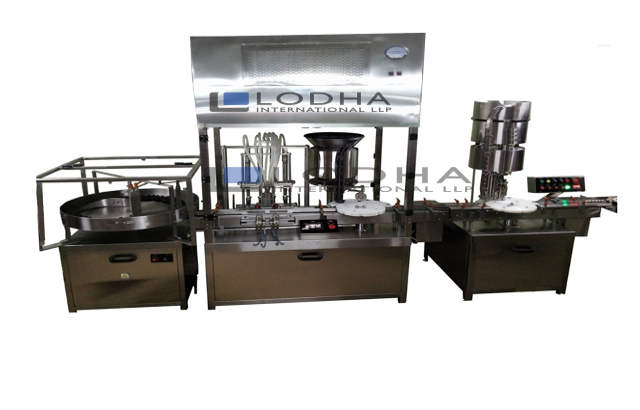

Automatic Two Head Volumetric Liquid Vial Filling with Rubber Stoppering Machine, Model LI-LVF is suitable for Round Vials with maximum speed of 60 Vials per minute. The Machine can give Maximum speed of 100 Vials per minute depending on nature of Liquids, Vial Neck Size, Fill Volume and Rubber Stopper size. Machine construction in fully Stainless-Steel finish including machine frame structure. Machine with built-in Turn Tables at In-feed and Out-feed with individual drives to match the speed of incoming and outgoing vials for smoother operation. All parts coming in contact with Liquids and Rubber Stoppers are made from SS 316 Materials. Machine also available with vaccumetric type Rubber Stoppering System.

Special Features:

  • No Vial - No Fill System, No Vial - Machine Stop System.
  • No Stopper - Machine Stop System.
  • All contact parts made of SS 316 material with easy removal system for Auto-Claving/Sterilization/Cleaning.
  • Machine construction in SS 304 material.
  • Diving Nozzle for Foam free filling.
  • Very High Fill Accuracy.
  • Automatic Infeed and Exit of Vials.
  • Minimum Change Over time.
  • Built-in A.C. Variable Freq. Drive System.

Technical Specification:

Sr.No.Machine ModelLI-LVF 2LI-LVF 4
1.No. of Filling HeadTwoFour
2.Vial Diameter15mm to 50mm15mm to 50mm
3.Vial Height75mm Maximum75mm Maximum
4.Rubber Stopper Diameter13mm and 20mm Dry or Wet Grey Butyl13mm and 20mm Dry or Wet Grey Butyl
5.Filling Range1ml to 50ml with help of Change Parts / Syringes1ml to 50ml with help of Change Parts / Syringes
6.Accuracy+/- 1% Depending on Fill Volume and type of Liquid+/- 1% Depending on Fill Volume and type of Liquid
7.Electrical220 VAC Single Phase Power Supply (50 Hz)220 VAC Single Phase Power Supply (50 Hz)
8.Power2.0 H.P.3.0 H.P.
9.Speed40 to 60 Vials Per MinuteMax. 120 per minute
10.Syringe Fill Range0.1ml to 1ml, 1ml to 5ml, 2ml to 10ml and 10ml to 50ml0.1ml to 1ml, 1ml to 5ml, 2ml to 10ml and 10ml to 50ml
11.Conveyor Height800-850 mm800-850 mm
12.Overall Dimensions2400 mm (L) x 850 mm (W) x 1400 mm (H)3000 mm (L) x 850 mm (W) x 1400 mm (H)
